Large grinding machines

Jiaxin sander is one of the world leader in wet grinding technology, all devices are based on customer requirements tailored to customers: including laboratory to industrial production and complete systems engineering, our aim: to provide users improve product performance, increase production capacity, reduce energy consumption, lower production costs, to join hands with customers to enhance international competitiveness of products!
Grinding Machine Series

Single-pass grinding
Suitable fineness: 1um-50nm
Grinding media size: ≧ 0.05mm
The model uses a flexible, easy to clean, easy maintenance, suitable for medium viscosity, high-volume products

Model: JX5-N60L
Uses: automotive paint, industrial paint, a variety of nano-products Grinding
Features: Suitable for demanding grinding carbon black product category

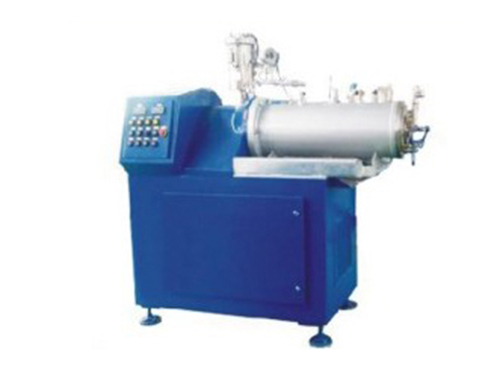

Profile: Horizontal sand mill is a hollow shaft structure, centrifugal separator, effective protection of the life of the screen. Efficient centrifugal separator system can be well separated from the product and grinding media. This ensures that the machine for the good functioning of highly viscous products. According to the specific requirements of the product, the machine can be designed (such as polyurethane, ceramic, wear-resistant steel, tungsten carbide) Order Hotline according to different materials: 0086-13382389111

Model Chamber Volume(L) Motor Power (KW)



Medium Size Beads filling capacity(%) Weight(kg) Measurement L×W×H(mm)
JX5-15L 15 15 50~200 0.9~2.0 60~85 880 1680×1200×1700

1)20μm-50nm fineness solve the problem 2) resolve not change color purity without metal contamination problem 3) solve problems yielding an abrasive power consumption
4) resolve plugging leak sealing liquid separator downtime 5) solve the frequent replacement of core parts and the use of stable life issues 6) resolve timely and professional service issues
