Jiaxin sander is one of the world leader in wet grinding technology, all devices are based on customer requirements tailored to customers: including laboratory to industrial production and complete systems engineering, our aim: to provide users improve product performance, increase production capacity, reduce energy consumption, lower production costs, to join hands with customers to enhance international competitiveness of products!
Horizontal sander series Single-pass grinding Suitable size: 20um-2um Grinding media size: ≧ 0.9mm The model uses a flexible, easy to clean, easy maintenance, suitable for medium viscosity, high-volume products

Model：JX5-B30L
Uses：automotive paint, industrial paint, a variety of nano-products Grinding
Features:Suitable for grinding 2um ~ 30um particle size in high demand product

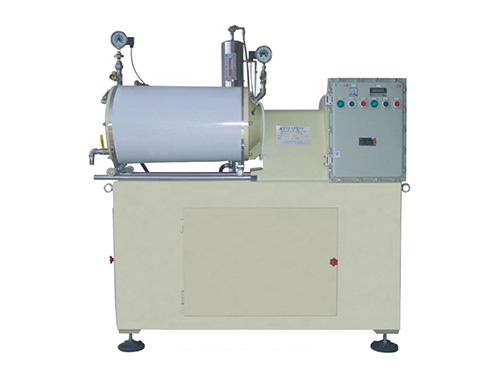

Profile:Cone horizontal sand mill is currently sub-micron ultra-fine grinding applications in the field of the best black sand mill. Mix can bring the whole grinding cylinder axis in the grinding media, high efficiency centrifugal separation system can be well separated from the product and grinding media. This ensures that the machine for the good functioning of highly viscous products. According to the specific requirements of the product, the machine can be designed (such as polyurethane, ceramic, wear-resistant steel, tungsten carbide) Order Hotline according to different materials:Order Hotline：00769-22718809

Model	Chamber Volume(L)	Motor Power （KW）	Producionrata (kg/Hr)	Medium Size	Beads filling capacity(%)	Weight(kg)	Weasurement L×Ｗ×Ｈ（mm）
JX5-20L	20	15/18.5	100~800	0.8~2.0	65~75	650	1190×760×1600
JX5-25L	25	18.5/22	100~800	0.8~2.0	65~75	700	1350×800×1600
JX5-30L	30	22	.120~1000	0.8~2.0	65~75	750	1380×800×1600
JX5-40L	40	30/37	140~1200	0.8~2.0	65~75	750	1500×900×1800
JX5-50L	50	30/37	140~1200	0.2~2.0	65~75	1280	1700×900×1800
JX5-60L	60	37/45	200~1700	0.2~2.0	65~75	1390	1900×900×1800
JX5-80L	80	45/55	220~1900	0.2~2.0	65~75	1460	2000×1000×1900

1）20μm-50nm fineness solve the problem 2) resolve not change color purity without metal contamination problem 3) solve problems yielding an abrasive power consumption
4) resolve plugging leak sealing liquid separator downtime 5) solve the frequent replacement of core parts and the use of stable life issues 6) resolve timely and professional service issues
