Jiaxin sander is one of the world leader in wet grinding technology, all devices are based on customer requirements tailored to customers: including laboratory to industrial production and complete systems engineering, our aim: to provide users improve product performance, increase production capacity, reduce energy consumption, lower production costs, to join hands with customers to enhance international competitiveness of products!
Nano horizontal sand mill series
Single-pass grinding
Suitable size: 50um-5um
Grinding media size: ≧ 0.9mm
The model uses a flexible, easy to clean, easy maintenance, suitable for medium viscosity, high-volume products

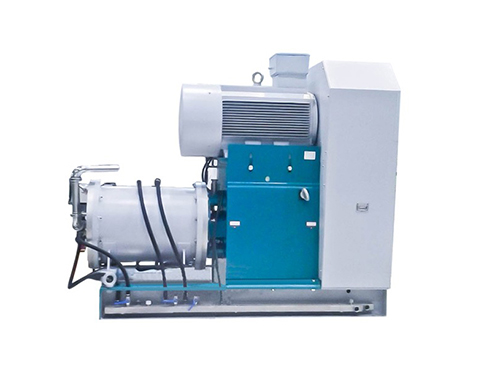

Model：JX6-NL60L
Uses：Ceramic ink, battery materials, titanium dioxide, inkjet and other nanotechnology products Grinding
Features:Suitable for grinding fineness of the product in 50nm ~ 5um
Profile:Stick pins Nano sander is a hollow shaft structure, centrifugal separator, effective protection of the life of the screen. Efficient centrifugal separator system can be well separated from the product and grinding media. This ensures that the machine for the good functioning of highly viscous products. According to the specific requirements of the product, the machine can be designed (such as polyurethane, ceramic, wear-resistant steel, tungsten carbide) in accordance with different materials
Order Hotline：00769-22718809
|
Model
|
Chamber Volume(L)
|
Motor Power （KW）
|
Batch processing
|
Medium Size
|
Weight(kg)
|
Weasurement L×Ｗ×Ｈ（mm）
|
|
|
|
|
|
|
|
|
|
JX6-NL30
|
30
|
37
|
500 the above
|
0.1~2.0
|
1600
|
1800×900×1800
|
|
JX6-NL60
|
60
|
55
|
1500 the above
|
0.3~2.0
|
3200
|
2200×1200×2000
|
|
JX6-NL150
|
150
|
95
|
2500 the above
|
0.3~2.0
|
6000
|
3000×1500×2500
|
|
JX6-NL200
|
200
|
150
|
3000 the above
|
0.3~2.0
|
9000
|
3600×1800×3300
|
|
JX6-NL500
|
500
|
315
|
5000 the above
|
0.3~2.0
|
12000
|
3760×1800×3300
|
1）20μm-50nm fineness solve the problem 2) resolve not change color purity without metal contamination problem 3) solve problems yielding an abrasive power consumption
4) resolve plugging leak sealing liquid separator downtime 5) solve the frequent replacement of core parts and the use of stable life issues 6) resolve timely and professional service issues
