Jiaxin sander is one of the world leader in wet grinding technology, all devices are based on customer requirements tailored to customers: including laboratory to industrial production and complete systems engineering, our aim: to provide users improve product performance, increase production capacity, reduce energy consumption, lower production costs, to join hands with customers to enhance international competitiveness of products!
Self-priming Nano sander series
Single-pass grinding
Suitable size: 50um-5um
Grinding media size: ≧ 0.05mm
The model uses a flexible, easy to clean, easy maintenance, suitable for medium viscosity, high-volume products

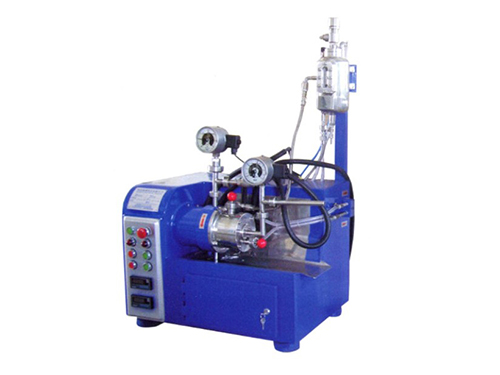

Model：JX1-N1L
Uses：Electronic materials, ceramic ink, titanium dioxide, inkjet and other nanomaterials
Features:Suitable grinding fineness of the product in 50nm ~ 10um
Profile:Horizontal sand ultrafine grinding machine is best sander. Mix can bring the whole grinding cylinder axis in the grinding media, high efficiency centrifugal separation system can be well separated from the product and grinding media. This ensures that the machine for the good functioning of highly viscous products. According to the specific requirements of the product, the machine can be designed (such as polyurethane, ceramic, wear-resistant steel, tungsten carbide) in accordance with different materials
Order Hotline：00769-22718809
|
Model
|
Chamber Volume(L)
|
Motor Power （KW）
|
Producionrata (kg/Hr)
|
Medium Size
|
Beads filling capacity(%)
|
Weight(kg)
|
Weasurement L×Ｗ×Ｈ（mm）
|
|
JX1-N1L
|
1
|
4
|
1~5
|
0.05~2.0
|
70~90
|
880
|
1680×1200×1700
|
1）20μm-50nm fineness solve the problem 2) resolve not change color purity without metal contamination problem 3) solve problems yielding an abrasive power consumption
4) resolve plugging leak sealing liquid separator downtime 5) solve the frequent replacement of core parts and the use of stable life issues 6) resolve timely and professional service issues
