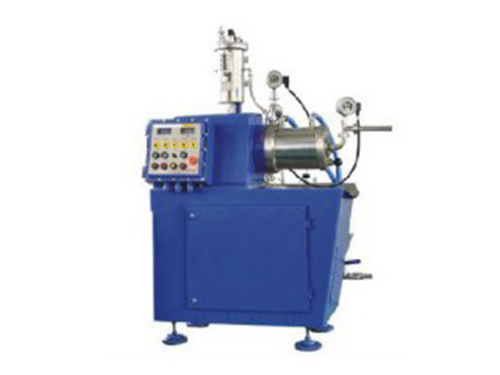

Centrifugal homogenizer
Jiaxin sander is one of the world leader in wet grinding technology, all devices are based on customer requirements tailored to customers: including laboratory to industrial production and complete systems engineering, our aim: to provide users improve product performance, increase production capacity, reduce energy consumption, lower production costs, to join hands with customers to enhance international competitiveness of products!
Centrifugal homogenizer series
Single-pass grinding
Suitable size: 20um-5um
Grinding media size: ≧ 0.9mm
The model uses a flexible, easy to clean, easy maintenance, suitable for medium viscosity, high-volume products

Model:JX7-N15~60L
Uses:Food, soft capsules, cell disruption and other nanotechnology products Grinding
Features:Suitable for high abrasive products
Profile:Centrifugal homogenizer is a hollow shaft structure, centrifugal separator, effective protection of the life of the screen. Efficient centrifugal separator system can be well separated from the product and grinding media. This ensures that the machine for the good functioning of highly viscous products. According to the specific requirements of the product, the machine can be designed (such as polyurethane, ceramic, wear-resistant steel, tungsten carbide) in accordance with different materials Order Hotline:00769-22718809

Model Chamber?Volume(L) Motor Power (KW) Batch processing Medium Size Weight(kg) Weasurement L×W×H(mm)






JX7-N15L 15 15 50~400 0.1~2.0 600 1200×760×1680
JX7-N20L 20 18.5 100~600 0.05~2.0 1200 1400×800×1680
JX7-N30L 30 30 100~1000 0.1~2.0 1600 1800×900×1800
JX7-N60L 60 45 1500the above 0.3~2.0 3200 2200×1200×2000
JX7-N150L 150 75 2000the above 0.3~2.0 6000 3000×1500×2500
JX7-N200L 200 120 2500the above 0.3~2.0 9000 3600×1800×3300
JX7-N500L 500 315 5000the above 0.3~2.0 12000 3760×1800×3300


1)20μm-50nm fineness solve the problem 2) resolve not change color purity without metal contamination problem 3) solve problems yielding an abrasive power consumption
4) resolve plugging leak sealing liquid separator downtime 5) solve the frequent replacement of core parts and the use of stable life issues 6) resolve timely and professional service issues
