Mixer
Jiaxin sander is one of the world leader in wet grinding technology, all devices are based on customer requirements tailored to customers: including laboratory to industrial production and complete systems engineering, our aim: to provide users improve product performance, increase production capacity, reduce energy consumption, lower production costs, to join hands with customers to enhance international competitiveness of products!

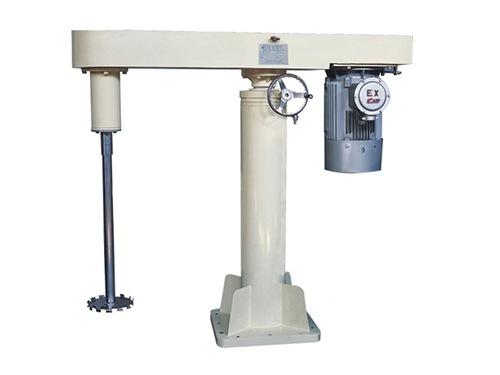

Mixer series
Secondary dispersion single channel
The model uses a flexible, easy to clean, easy maintenance, suitable for medium viscosity, high-volume products

Model:JX2-15HP
Uses:High-speed dispersion
Features:For mixing all non-solidified paste
Profile:Mixer structure compact and practical, designed for laboratory or narrow space designed equipment. It does not require pumps and connecting pipes, cleaning or maintenance very convenient. Manual, pneumatic lift mode can be flexibly configured, the machine can make more detailed powder products, as well as to increase the brightness of the color. The machine produced by the production rate of more than 96% Order Hotline:00769-22718809

Model Chamber Volume(L) Motor Power (KW) Lift (mm) Speed(r/min) Discsize(in) Weight(kg) Weasurement L×W×H(mm)
5HP 200 3.7 800 0~1800 7 750 1700×500×1600
10HP 300 7.5 1000 0~1800 10 980 1700×500×1680
15HP 900 11 1100 0~1800 11 1120 1800×500×1700
20HP 1000 15 1100 0~1800 12 1410 1800×600×1756
25HP 1500 18.5 1200 0~1800 13 1720 2100×650×1800
30HP 2000 22 1500 0~1800 14 1860 2100×700×2200
40HP 2500 30 1500 0~1800 15 2580 2100×900×2200
50HP 3000 37 1500 0~1800 16 2740 2200×900×2300


1)20μm-50nm fineness solve the problem 2) resolve not change color purity without metal contamination problem 3) solve problems yielding an abrasive power consumption
4) resolve plugging leak sealing liquid separator downtime 5) solve the frequent replacement of core parts and the use of stable life issues 6) resolve timely and professional service issues
