Jiaxin sander is one of the world leader in wet grinding technology, all devices are based on customer requirements tailored to customers: including laboratory to industrial production and complete systems engineering, our aim: to provide users improve product performance, increase production capacity, reduce energy consumption, lower production costs, to join hands with customers to enhance international competitiveness of products!

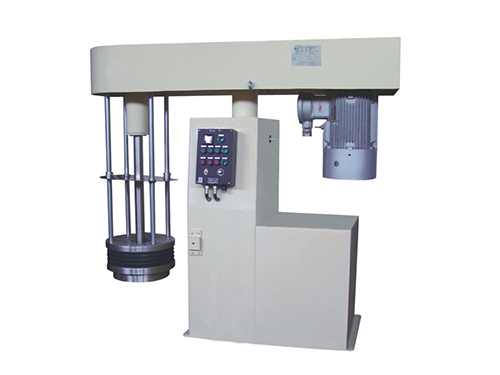

Blue Mill Series
Single-pass grinding
Suitable size: 30um-15um
Grinding media size: ≧ 2.0mm
The model uses a flexible, easy to clean, easy maintenance, suitable for medium viscosity, high-volume products
Model：JX3-B500L
Uses：Printing inks, industrial paint, automobile paint
Features:Co-grind black class products with high requirements
Profile:Blue sander easy to operate, easy to change color, set stirring, grinding equipment integration. Barrel in the same slot in advance mixing, dispersing, and blending in proportion, thus eliminating the need for additional piping, pump set ..... so as to enhance the effectiveness of the work. The machine can make more detailed powder products, as well as to increase the brightness of the color. The machine produced by the production rate of more than 96%
Order Hotline：00769-22718809
|
Model
|
Chamber Volume(L)
|
Motor Power （KW）
|
Producionrata (kg/Hr)
|
Medium Size
|
Beads filling capacity(%)
|
Weight(kg)
|
Weasurement L×Ｗ×Ｈ（mm）
|
|
JX3-B500L
|
20
|
22
|
300~460
|
2.0~2.2
|
50~70
|
2000
|
1720×1560×1800
|
1）20μm-50nm fineness solve the problem 2) resolve not change color purity without metal contamination problem 3) solve problems yielding an abrasive power consumption
4) resolve plugging leak sealing liquid separator downtime 5) solve the frequent replacement of core parts and the use of stable life issues 6) resolve timely and professional service issues
